10K Plus Pro
The 10K Plus Pro cell phone booster integrates the most powerful consumer boosting technology with a built-in antenna and a panel antenna. Boost signal in a home or office up to 12,000 square feet.
Networks : 3G and 4G LTE
Coverage : 6,000 - 12,000 Sq. Feet
Max.Gain : 68 dB
- Powerful antenna system
- Quality carrier grade design
- HiBoost App helps fine tune max. power
Have questions or need help with installation? Contact us here!
Our team stands by the quality and reliable performance of our products through the HiBoost Guarantee. We will repair or replace any product for up to three years after purchase.
30-DAY MONEY BACK & NO HASSLE RETURNS
Innovative and Reliable Cell Phone Signal Boosters
Improve 3G and 4G LTE cellular signal on any US or Canadian carrier with the 10K Plus cell phone signal booster. Integrate a reliable and affordable in-building wireless solution to improve cellular signal in small and large homes or offices.
Pretty Powerful Design, Antennas and Cables
Booster Performance for Every Carrier
Our wide-band boosters are compatible with all US and Canadian carriers such as AT&T, T-Mobile, Sprint, Verizon and US Cellular. Boost signal for any cell phone and cellular device on any network.

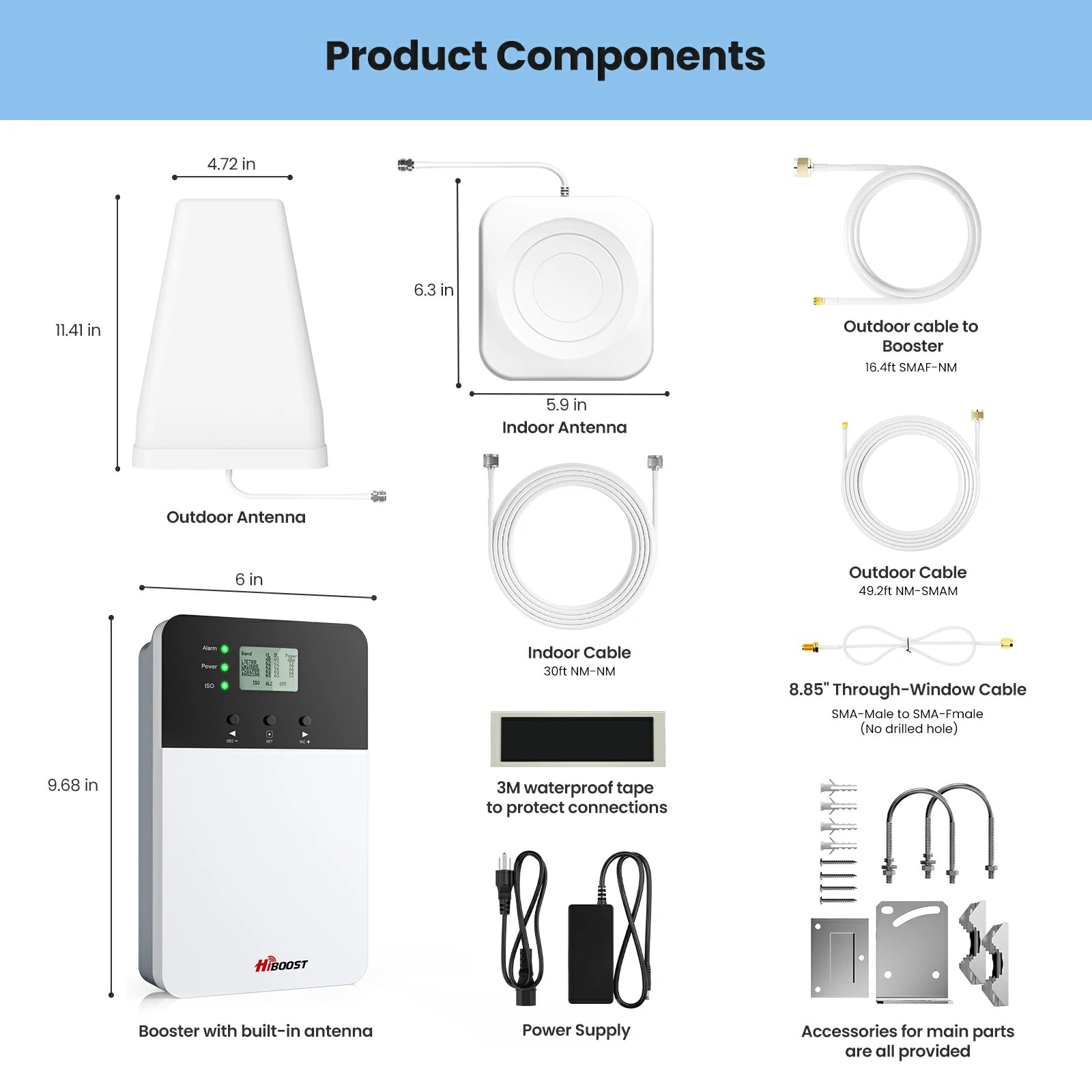

High-Performance Transmission Cables
A HiBoost 200 Low-Loss Coaxial Cable is used to connect the antennas to the booster. Each cable is equipped with industry standard Type-N connectors and are heavily shielded to protect the cell phone signal system from rain, dirt and dust.
True Heat Sink Design
How it Works
Plus Cell Phone Signal Booster
The booster communicates incoming and outgoing signal to cellular devices and towers. The 10K Plus has a maximum signal gain of 68 dB and power output of 12 dBm to improve signal strength.
This wide-band booster can improve signal strengths on any device. It is compatible with any carrier network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular.
High-Gain Outdoor Directional Antenna
The outdoor antenna helps the booster communicate with distant cell phone towers. This signal booster kit includes a powerful 9 dBi directional outdoor antenna receives signal.
Users can mount the antenna on a mast using the mounting hardware in the kit. Masts can installed on roofs, balconies or from the ground. (Please note, antenna masts are not included in this kit)

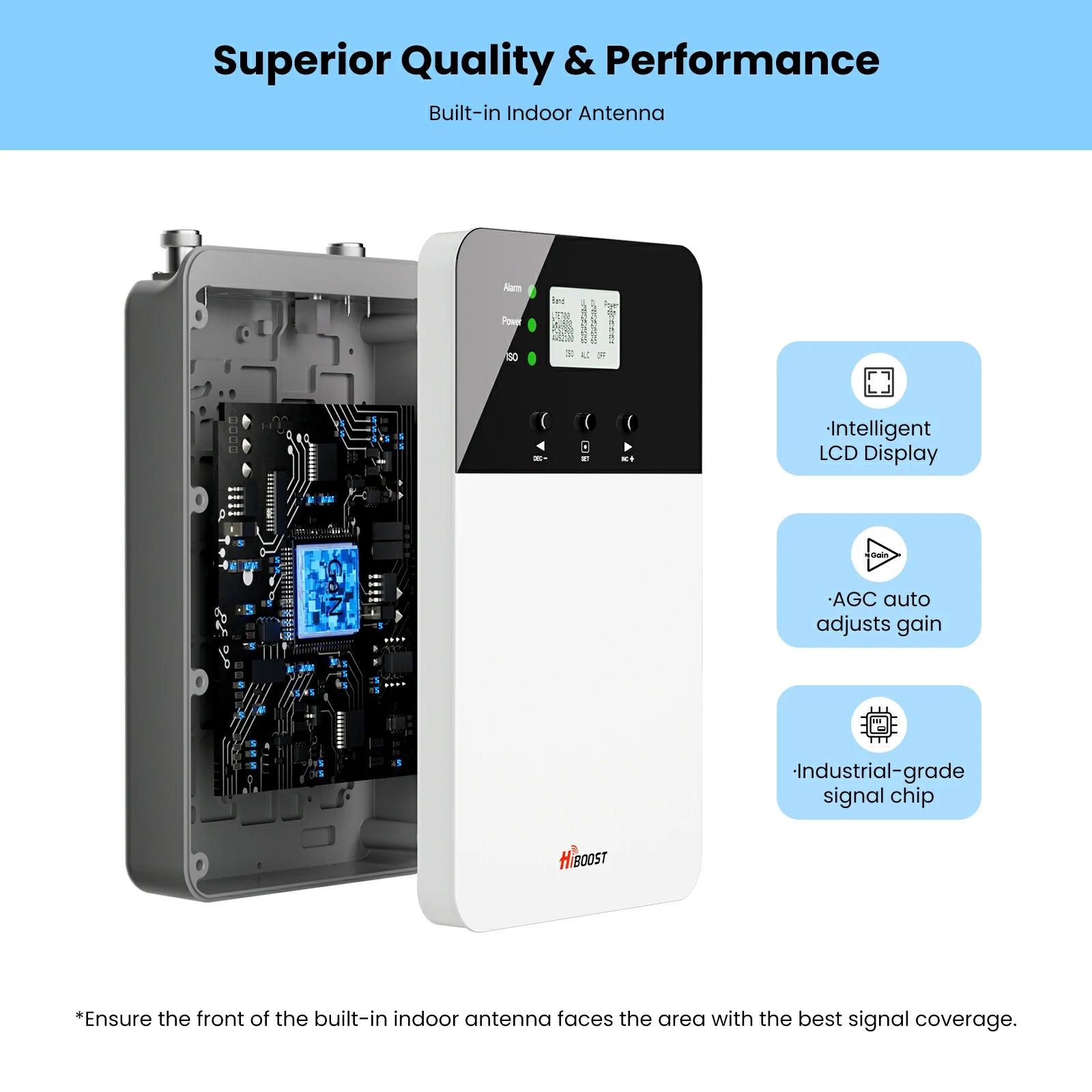

Built-In Indoor Panel Antenna
The indoor antenna distributes and sends signal to/from the booster. The Plus unit is integrated with a 7 dBi indoor panel antenna. Since the panel is built into the unit, user can simplify installations with less cable runs.
Expanded Coverage with a Secondary Indoor Antenna
The Plus unit can distribute signal between a maximum of two different indoor antenna. Add on a HiBoost Indoor Antenna Kit to expand the Plus signal booster’s coverage area. Simply plug in the antenna to the port on the booster and you are ready to boost signal from two different antennas.
This cell phone signal booster has a internal antenna that distributes cellular signal.
It also has additional indoor antenna ports that allow users to split cellular signal between two different indoor antennas.
Customize a cell phone signal booster set-up and expand signal coverage area directly from the booster unit.
Optimize Installation the Signal Supervisor App
Optimize Antenna System
The signal meter tool on the HiBoost Signal Supervisor app will help users find the best position for the outdoor antenna.
Remote Monitoring
Ensure that the booster is performing properly by setting up push-notifications and monitoring your booster from anywhere at all times.
Dedicated Technical Support
Need help with installing a booster? Chat with the HiBoost technical support directly from the Signal Supervisor app for remote troubleshooting.
Specs
| Working Bands | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 |
|---|---|
| UL Frequency Range | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 |
| DL Frequency Range | Band 12 / Band 13 / Band 5/ Band 25-2 / Band 4 |
| Supported Standards | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards |
| Maximum Gain | 68db |
| Maximium Output Power | DL 12 dBm |
| MGC(Step Attenuation) | ≥ 25 db/ 1 db step |
| I/O port | N-Female |
| Impedance | 50 ohm |
| Environment Condition | IP40 |
| Dimensions | 6 in×9.7 in ×1.4 in /152 mm×246 mm×36 mm |
| Weight | ≤ 5.0 lb / 2 kg |
| Power Supply | Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A |
