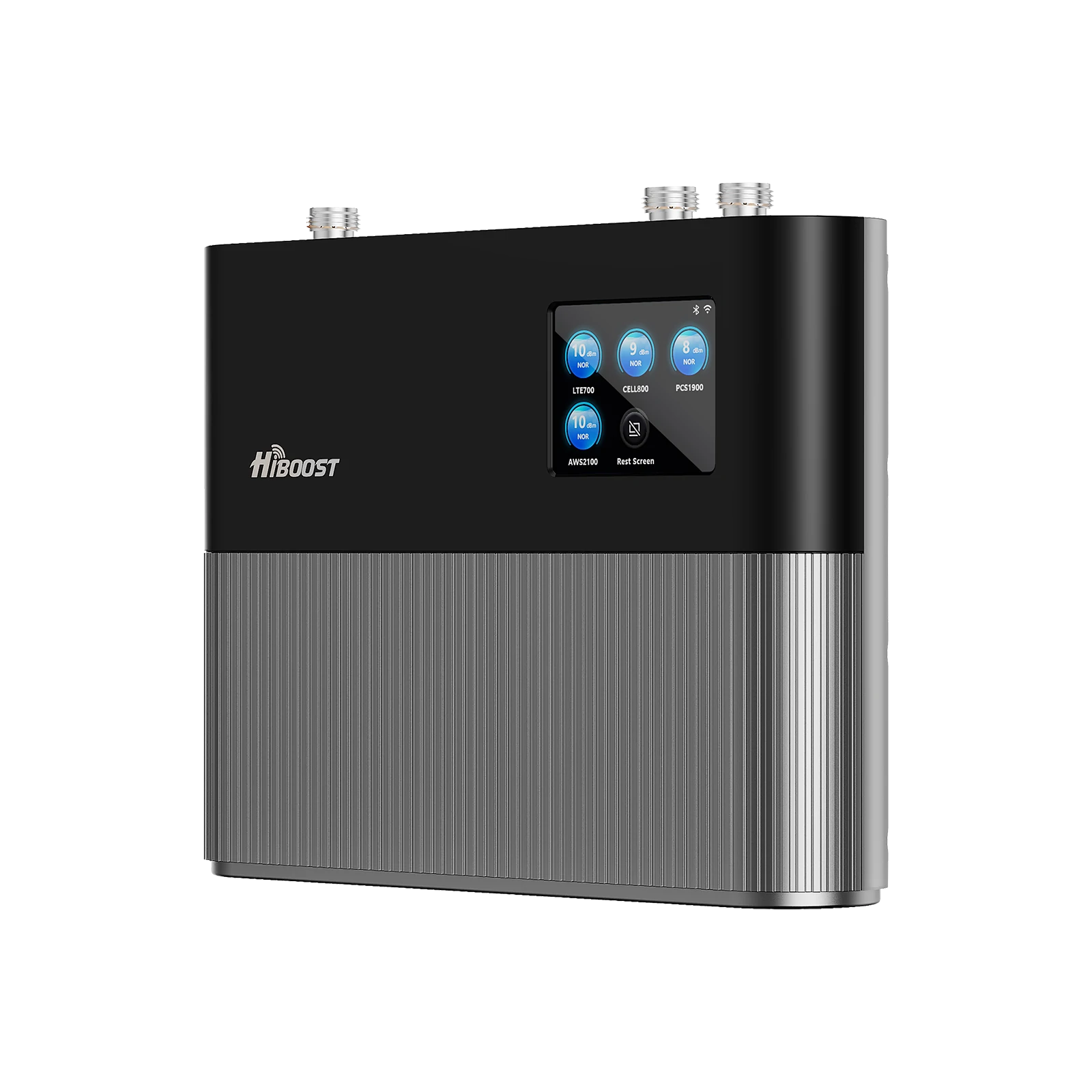

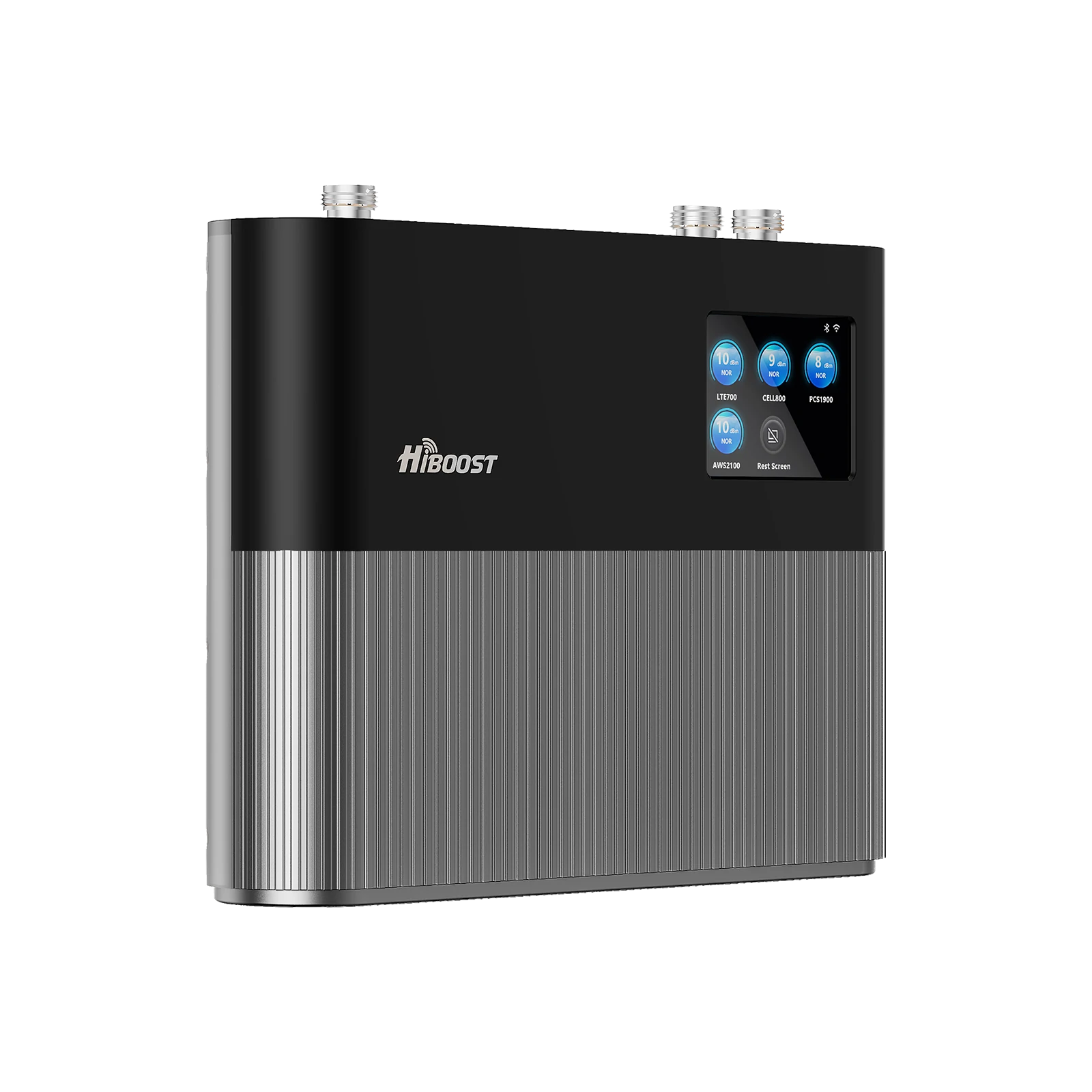

HiBoost CommLink 30K

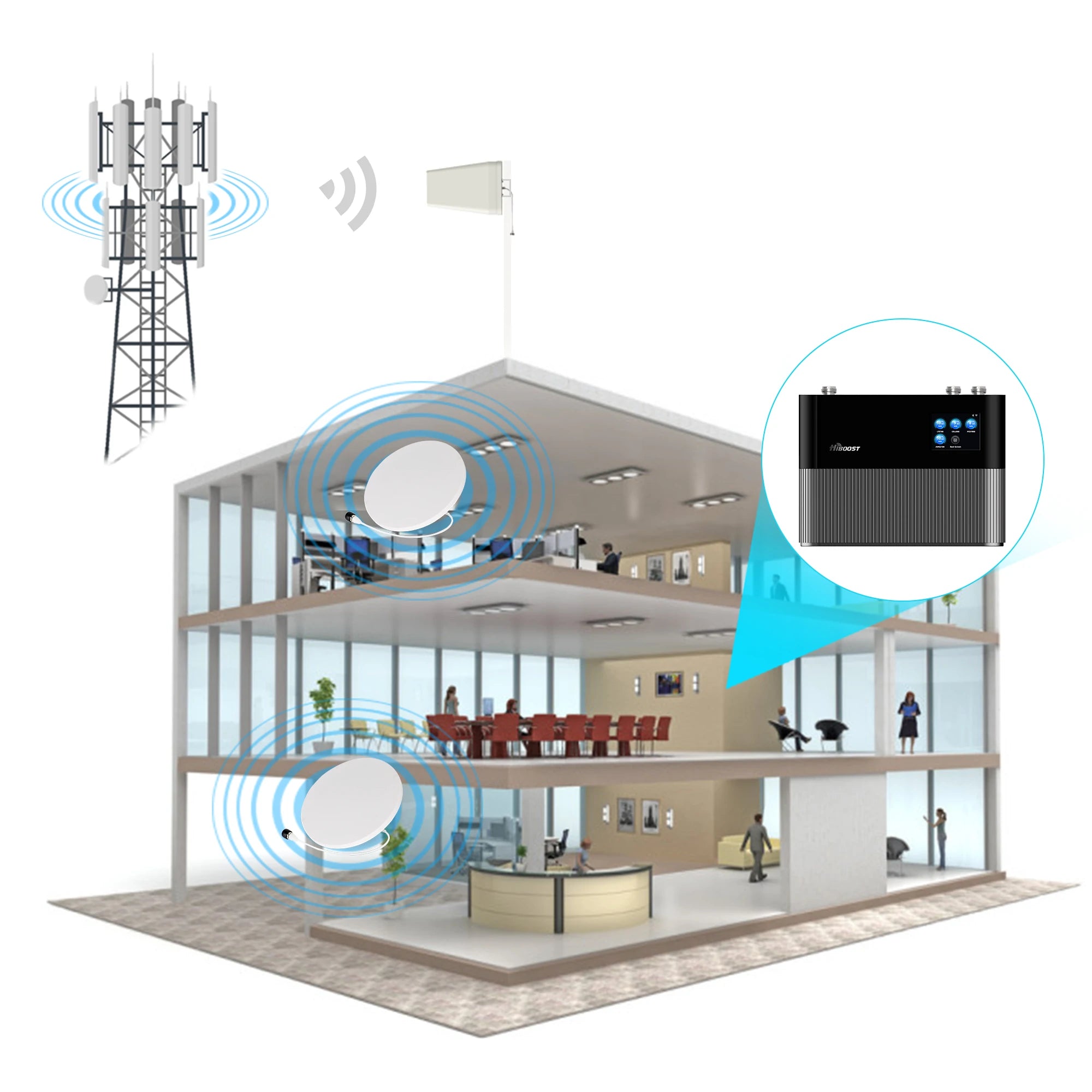

The HiBoost CommLink 30K is engineered for professional installation in residential, office, and light-commercial environments requiring robust in-building coverage. Delivering up to 72 dB system gain and coverage up to 30,000 sq ft, this amplifier ensures stable signal performance across all major U.S. and Canadian carriers.

Online Users Icon People are viewing this right now

Networks:Band 12/17, Band 13, Band 5, Band 25/2, Band 4
Coverage:30000 sq ft
Max.Gain:72 dB

HiBoost App monitor

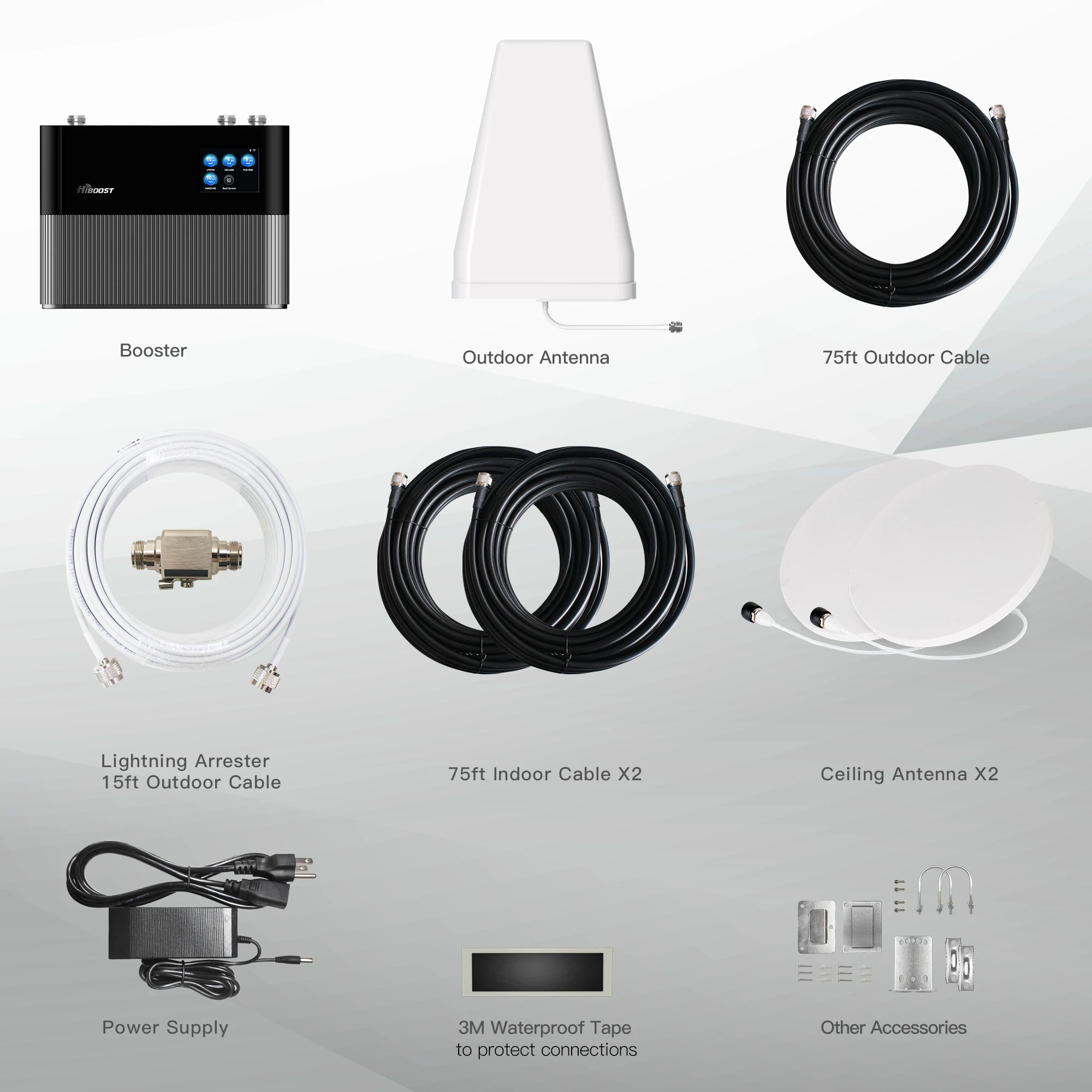

Two indoor antennas
Wall-mountable metal enclosure
Better talk, text & stream guaranteed
LCD touchscreen for local control and gain adjustment
Works with all US carriers
5G Compatible
FCC Approved & IC Approved


Do You Want to Get Boosted?

Phone: (469) 871-2552

Email: review@hiboost.com

Partner With Us

Tech Specs

  • Working Band Band 12/17 / Band 13 / Band 5 / Band 25/2 / Band 4
  • UL Frequency Range(MHz) 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
  • DL Frequency Range(MHz) 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
  • Supported Standards 5G DSS, LTE, HSPA+, EVDO, WCDMA, GSM
  • Max Gain 72dB
  • Max Output Power DL 14*2 dBm
  • MGC (Step Attenuation) ≥ 25 dB / 1 dB step
  • Noise Figure ≤ 6 dB typ.

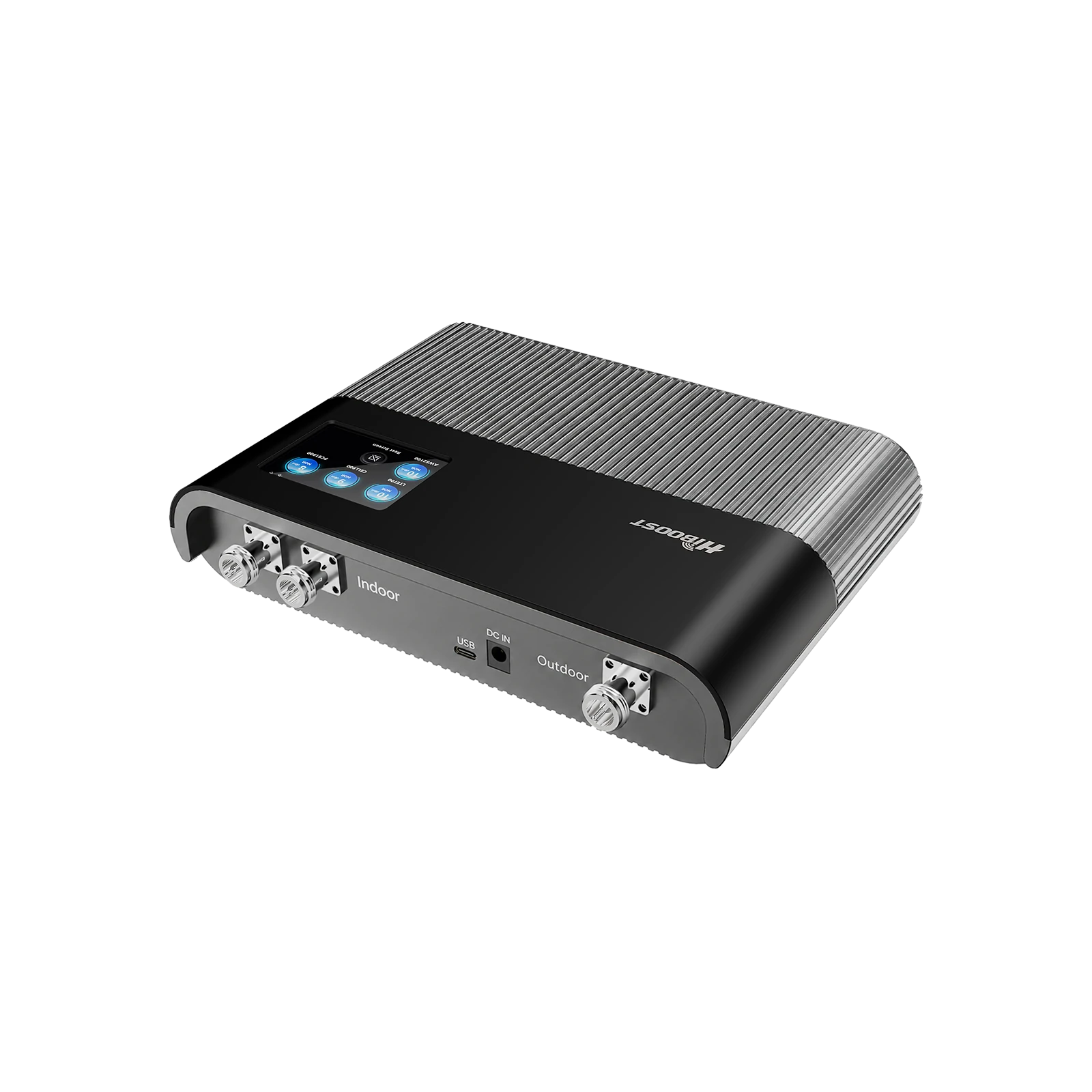

  • I/O Port N-Female
  • Inpedance 50 ohm
  • Power Supply Input AC 100-240V, 50/60 Hz, Output DC 12V/3A
  • Power Consumption ≤ 18 W
  • Environment –25 °C to +55 °C (<85% RH)
  • Environment Conditions IP40
  • Dimensions 9.3 x 6.9 x 2 in / 236 x 174 x 50 mm
  • Weight ≤ 3.09 lbs / 1.4 kg
  • Certification FCC / ISED
