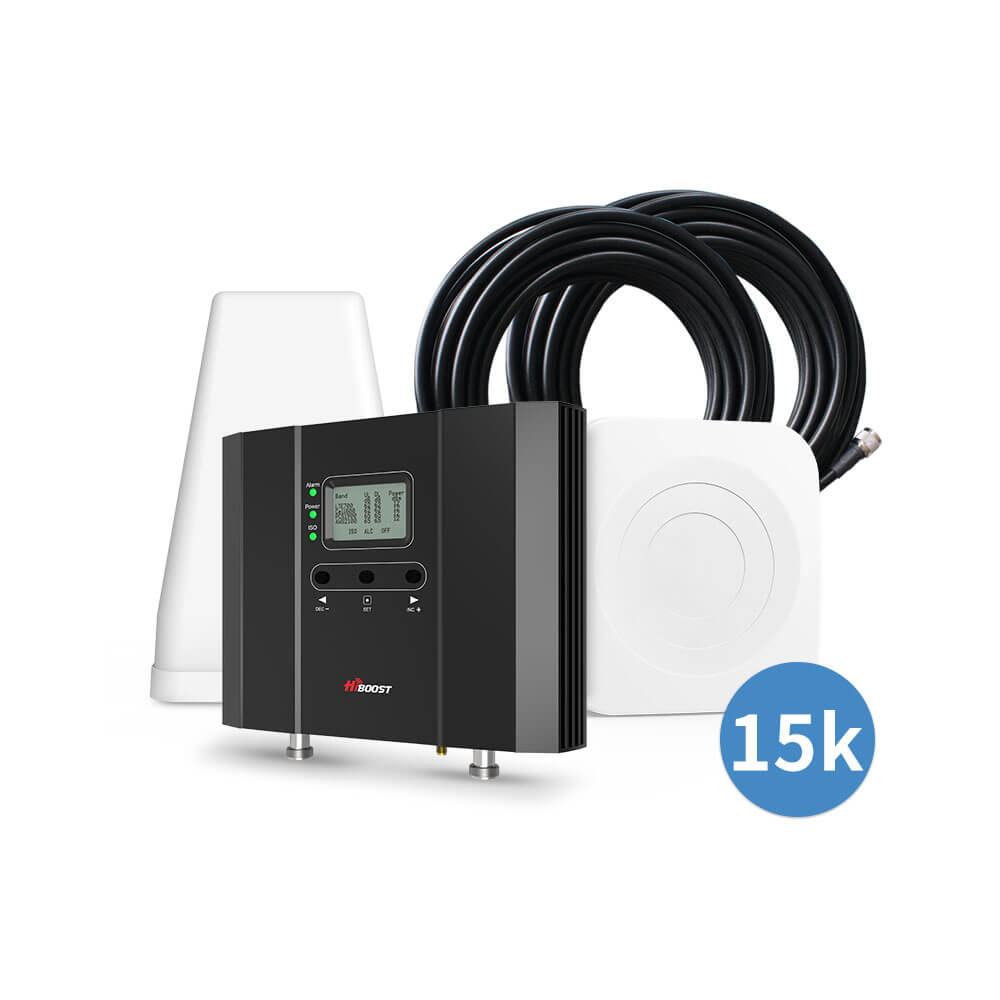

15K Smart Link
$899.99
The HiBoost 15K Smart Link was fundamentally designed to help maximize your 3G and 4G LTE signal by providing the most powerful consumer solution. Ideal for customers with weak outdoor signal. The maximum gain is 70 dB and it has the capability to cover up to 15,000 square feet.
Networks : 3G and 4G LTE
Coverage : 7,000-15,000 Sq. Feet
Max.Gain : 70 dB
- Powerful antenna system
- Quality carrier grade design
- HiBoost App helps fine tune max. power
- LCD Display
Have questions or need help with installation? Contact us here!
Boost Your Signal Or Money Back
Our team stands by the quality and reliable performance of our products through the HiBoost Guarantee. We will repair or replace any product for up to three years after purchase.
30-DAY MONEY BACK & NO HASSLE RETURNS
Carrier Quality Cell Phone Signal Boosters
Increase 3G and 4G LTE cellular signal strength on any cellular device by installing a Smart Link signal booster. Integrate a reliable and affordable in-building wireless solution to improve cellular signal in small and large homes or offices.
Powerful Design, Antennas and Cables
Booster Performance for Every Carrier
Users can boost signal for any type of cellular device on any network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular. Improve data speeds and voice quality for cell phones, tablets and hot spots.

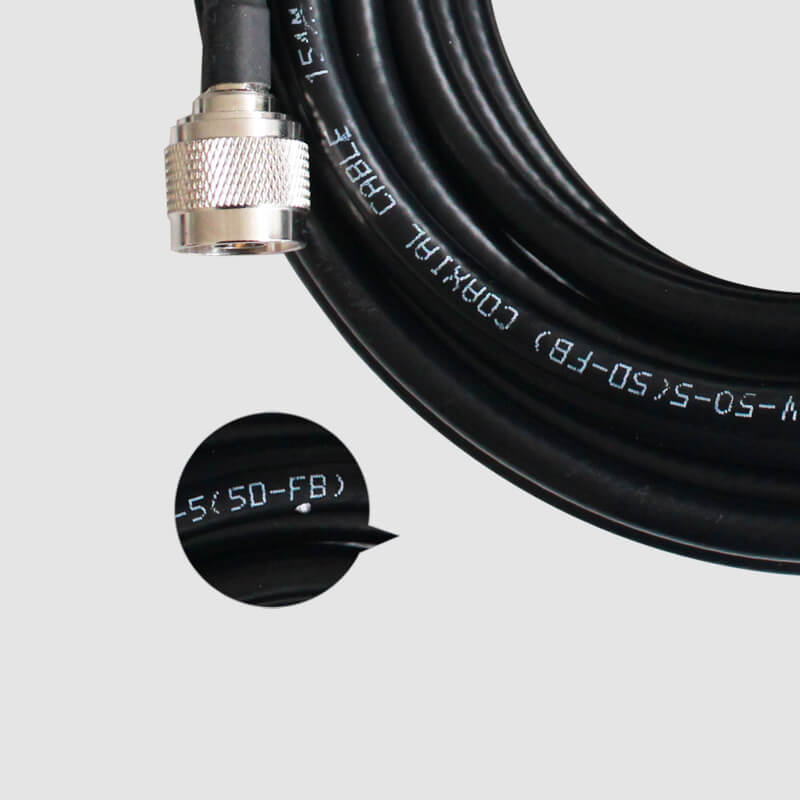

High-Performance Transmission Cables
Each Smart Link kit includes two HiBoost 400 Low-Loss Coaxial Cables that have a heavy-duty outer installation and type N-connectors. These cables protect the cell phone signal booster system from rain, snow, dirt and dust.

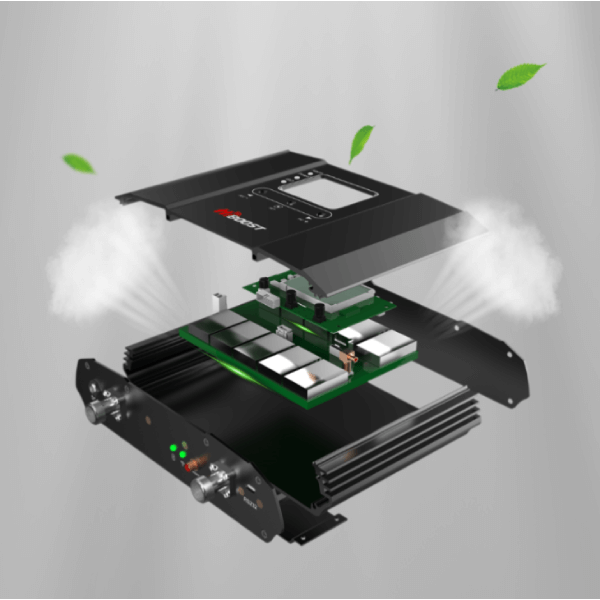

True Heat Sink Design
How it Works
The Smart Link cell phone booster series integrates carrier grade components to maximize performance.

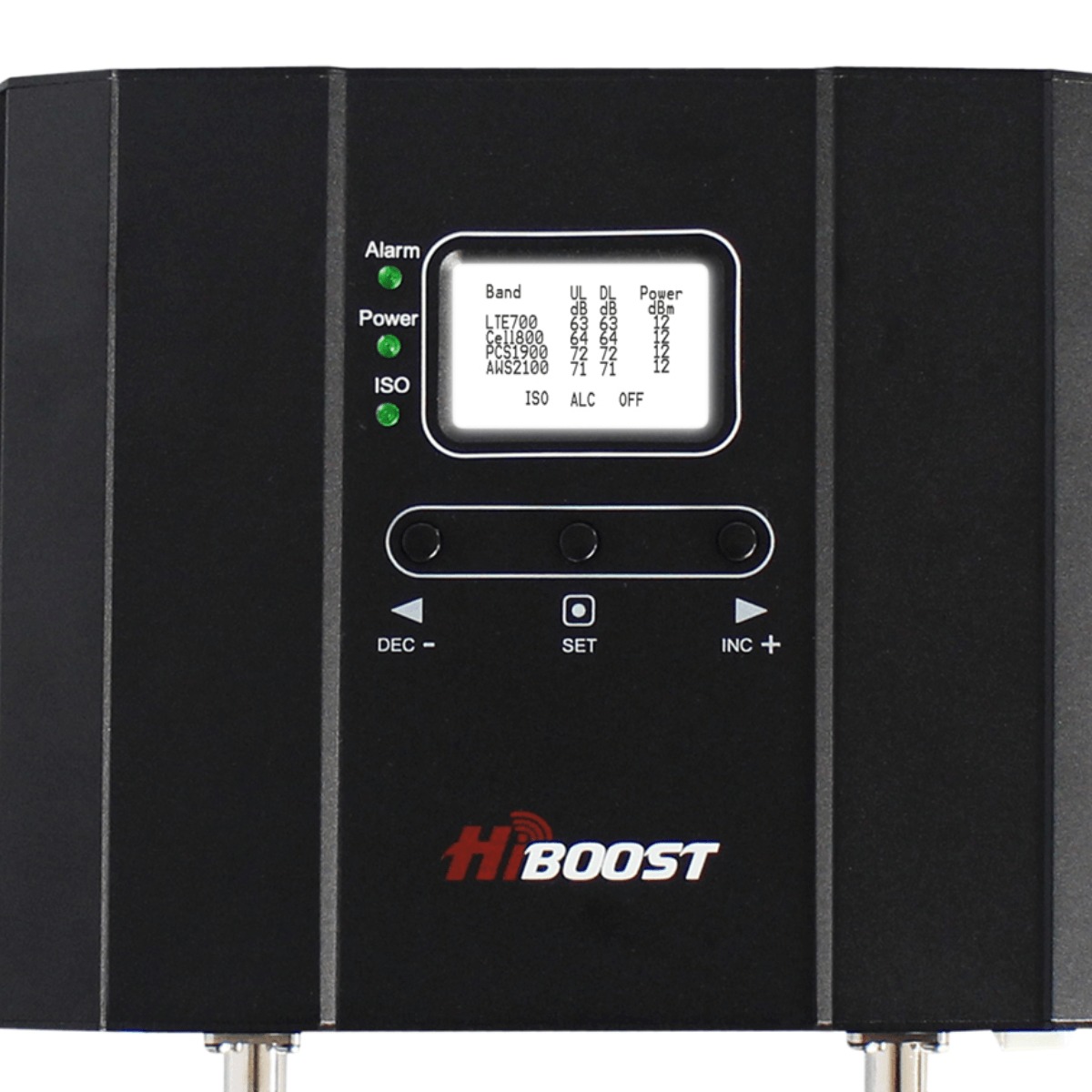

It is an bluetooth/wi-fi enabled booster that shows real-time gain and power output performance on a LCD Display and remotely from the Signal Supervisor app.

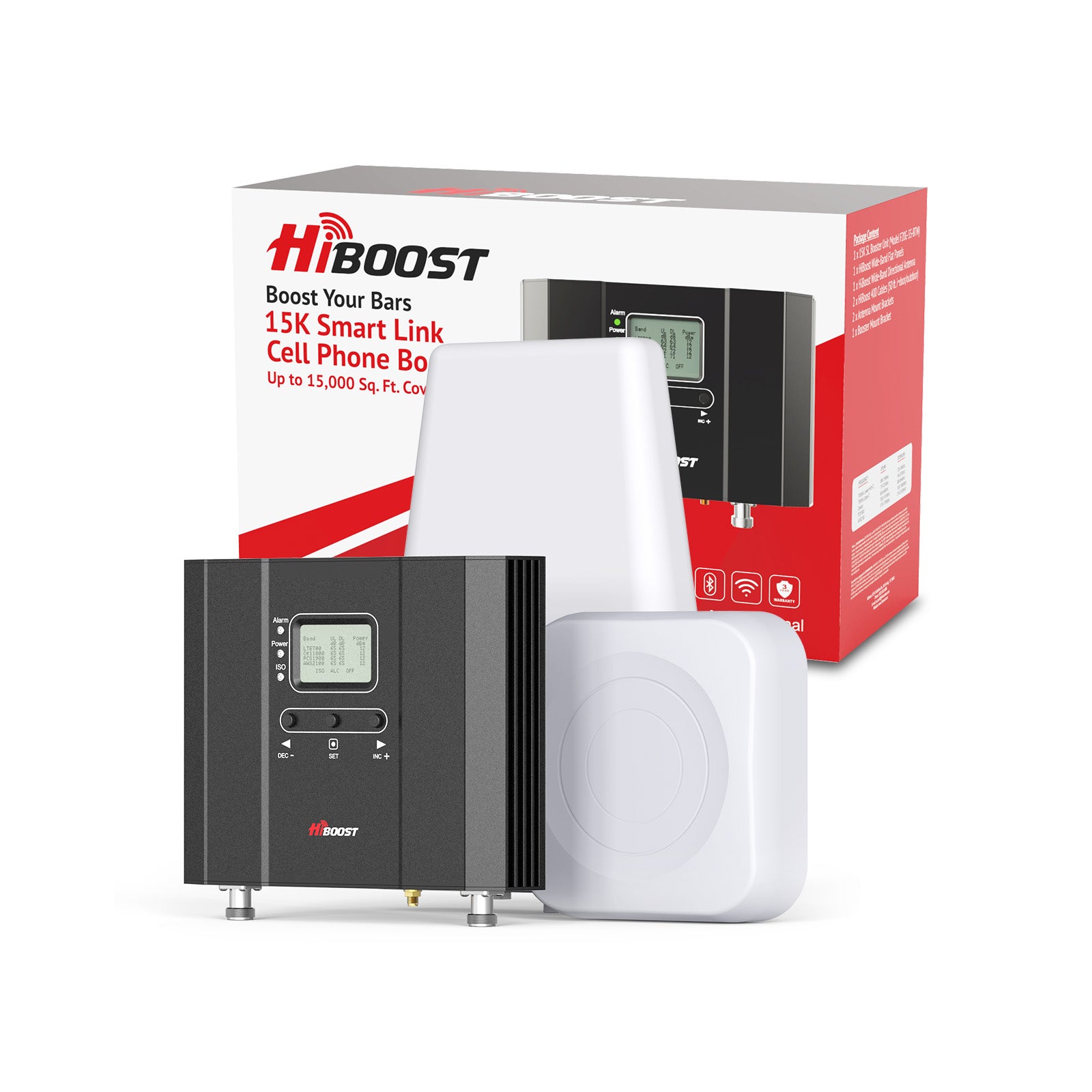

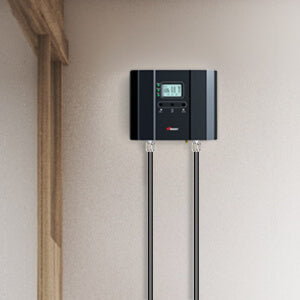

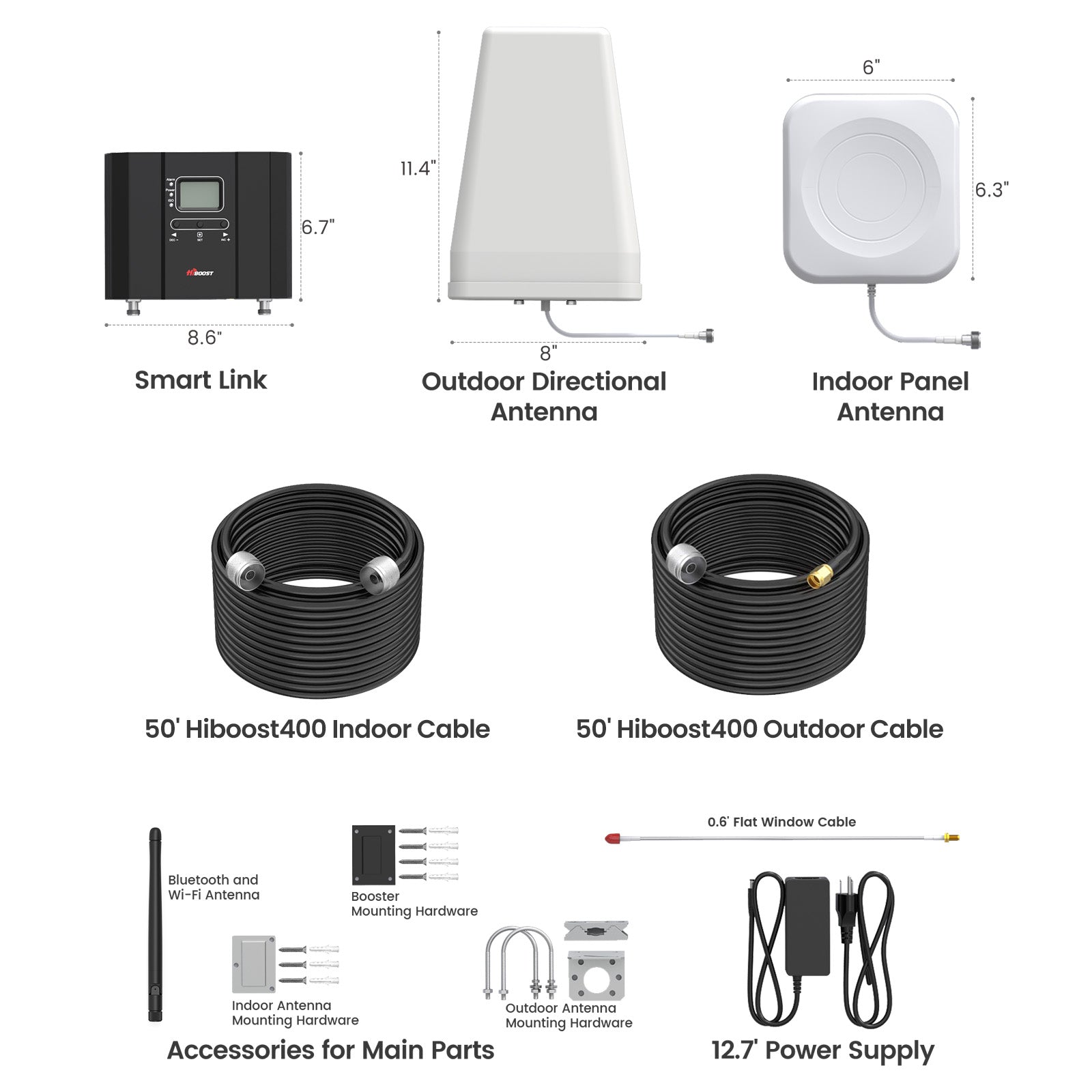

Smart Link Phone Signal Booster
The booster communicates incoming and outgoing signal to cellular devices and towers. The 15K Smart Link has a maximum signal gain of 70 decibels and power output of 12 dBm to improve signal strength.
This wide-band booster can improve signal strengths on any device. It is compatible with any carrier network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular.

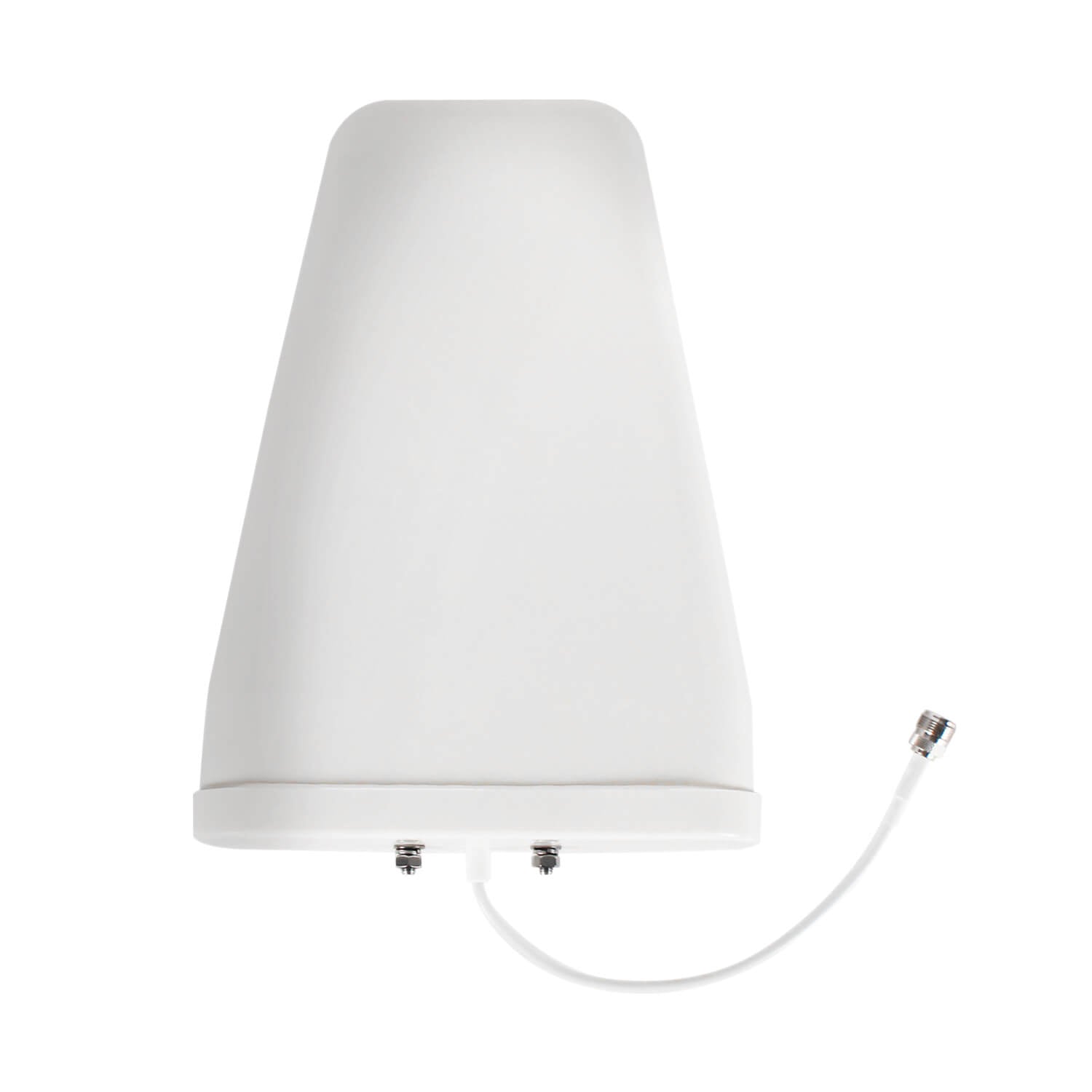

High-Gain Outdoor Directional Antenna
The outdoor antenna helps the booster communicate with distant cell phone towers. This signal booster kit includes a powerful 9 dBi directional outdoor antenna receives signal.
Users can mount the antenna on a mast using the mounting hardware in the kit. Masts can installed on roofs, balconies or from the ground. (Please note, antenna masts are not included in this kit)
Sleek and Slim Indoor Panel Antenna

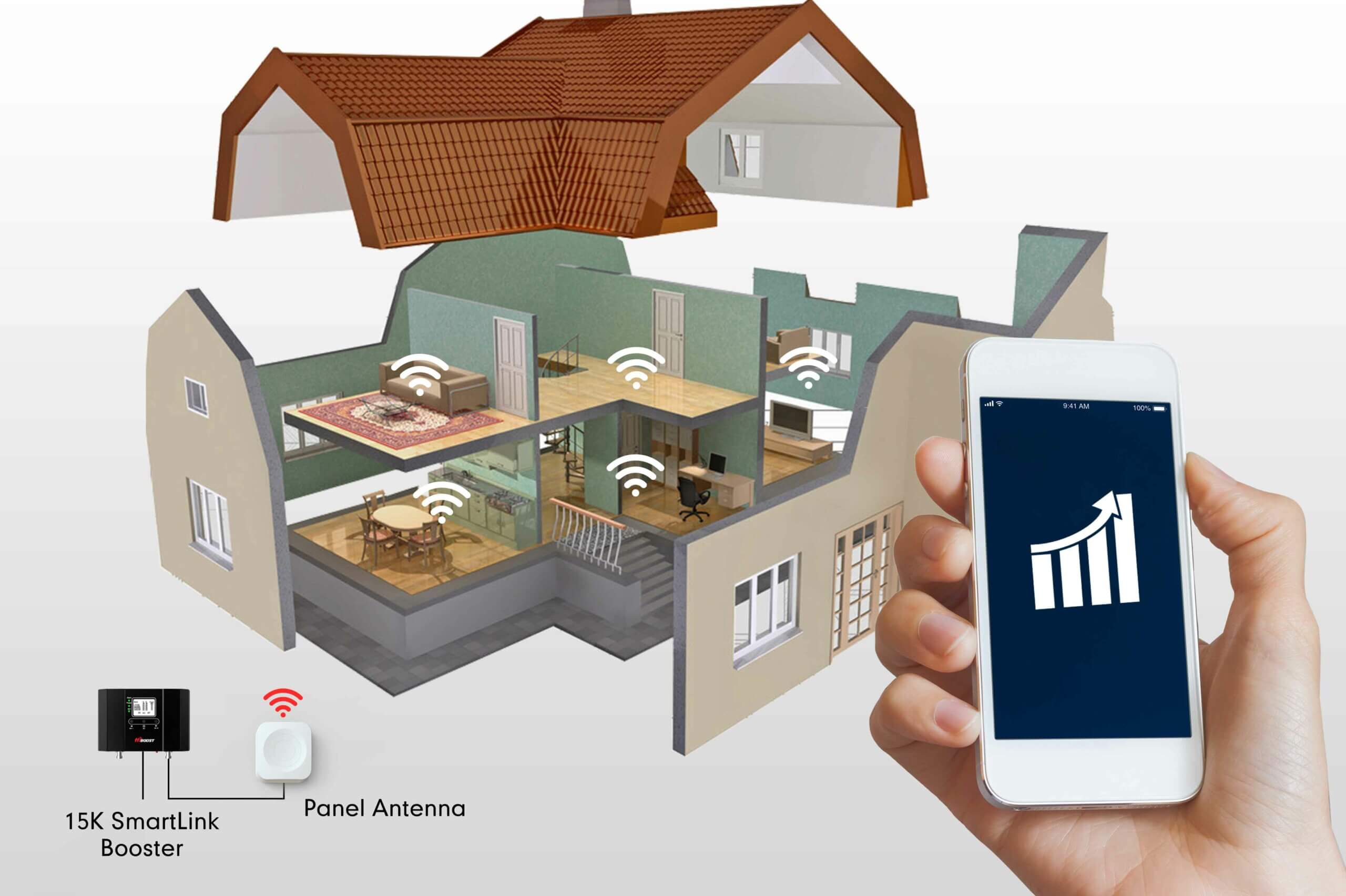

The indoor antenna distributes and sends signal to/from the booster. The Plus unit is integrated with a 7 dBi indoor panel antenna. Since the panel is built into the unit, user can simplify installations with less cable runs.
Expanded Coverage with a Secondary Indoor Antenna
The 15K Smart Link can distribute signal between a maximum of two different indoor antenna. Users can split signal by installing a 50 Ohm splitter and a secondary HiBoost Indoor Antenna Kit to expand the signal booster’s coverage area.

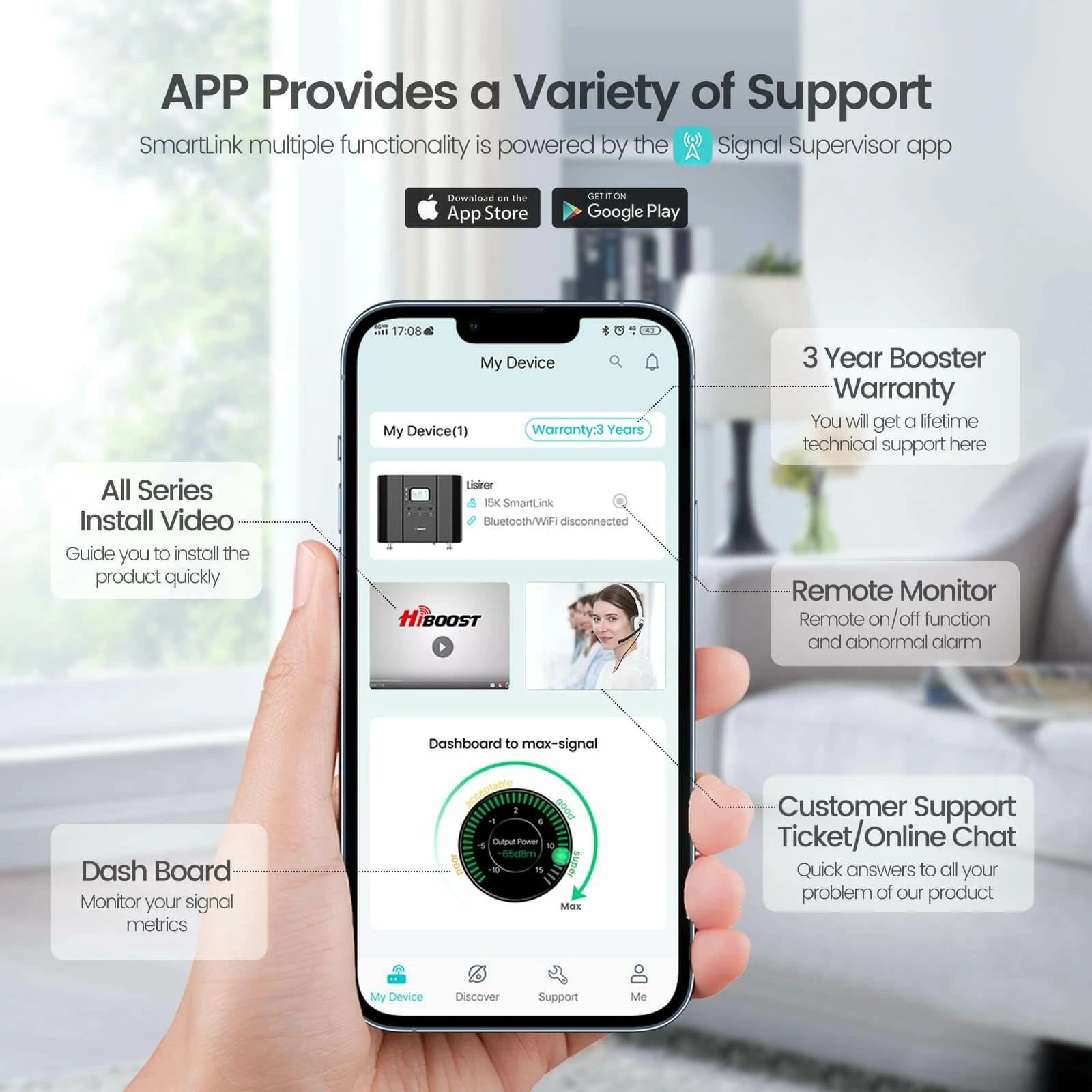

Optimize Installation the Signal Supervisor App
Optimize Antenna System

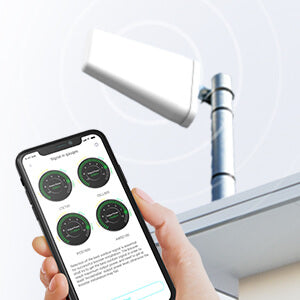

The signal meter tool on the HiBoost Signal Supervisor app will help users find the best position for the outdoor antenna.
Remote Monitoring
Ensure that the booster is performing properly by setting up push-notifications and monitoring your booster from anywhere at all times.
Dedicated Technical Support
Need help with installing a booster? Chat with the HiBoost technical support directly from the Signal Supervisor app for remote troubleshooting.
Specs
| Working Bands | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 |
|---|---|
| UL Frequency Range | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 |
| DL Frequency Range | Band 12 / Band 13 / Band 5/ Band 25-2 / Band 4 |
| Supported Standards | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards |
| Maximum Gain | 70 dB |
| Maximium Output Power | UL 24 dBm, DL 12 dBm |
| MGC(Step Attenuation) | ≥ 25 dB / 1 dB step |
| I/O port | N-Female |
| Impedance | 50 ohm |
| Environment Condition | IP40 |
| Dimensions | 8.6 in×6.5 in ×2 in /218 mm×165 mm×50 mm |
| Weight | ≥ 5.0 lb / 2.2 kg |
| Power Supply | Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A |
